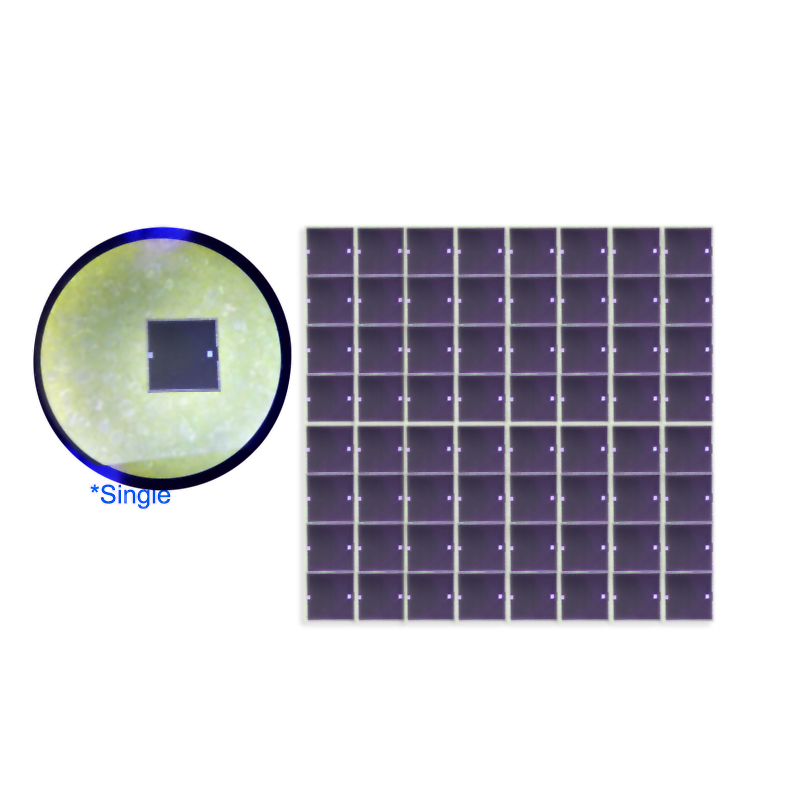

2.8x2.8mm SILICON PHOTODIODES CHIP LXDPN28

SILICON PHOTODIODES CHIP

MODEL NO.:LXD3030CP

Chip size:2.85mm * 2.85mm

Chip thickness：0.405 ± 0.038mm

Bonding pad (Anode)：0.5*0.5mm

Bonding pad (Cathode )：0.5*0.5mm

Features:
High Sensitivity , Quick Response
Reliable Performance
Good Characteristic of Spectrum

Applications:
Optical receiving,Industrial control ,Optical positioning

Parameters：
Short Circuit Current at 100lux (at 25℃):------------------------- 1.8uA(±40%)
Dark Current at 0 Lux:-------------------------------------------------- 10*10-8 A (max)
Open Circuit Voltage at 100lux (at 25℃)------------------------- 300mV (min)
Spectral Response peak (at 25℃)----------------------------------- 700±20nm
Spectral Response (at 25℃) --------------------------------- 300-780nm
 ResponseTime at 1000lux, RL=100Ω(at 25℃) -----------------0.5uS
Ambient Temperature Range:-------------------------------------﹣30～+65℃

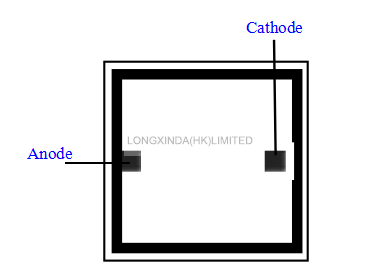

OUTLINE:
