NSL-26 Оптопара (тип с фоторезистором CdS и светодиодом)

Type No.: NSL-26

This optocoupler consists of an LED input optically coupled to a TO-5 Hermetic photocell. The photocell resistance is high when the LED current is "off" and low resistance when the LED current is "on".

■Typical Applications:

• Industrial

■Features

• Compact, moisture resistant package
• Low LED current
• Passive resistance output
• Hermetic Photocell

■Absolute Maximum Rating:

■Typical Electro-optical characteristics rating (Ta=25 ℃ unless otherwise noted)
Contact us for recommendations on specific test conditions and procedures.

Note:
 (1) Derate 1.0 mW/°C above 25°C ambient
(2) >2 mm from case for <5 sec.
 (3) The Rise Time, TR is the time required for the dark to
 light change in conductance to reach 63% of its final
 value.
 (4) Print “NSL-26 “ and date code “YYWW”.

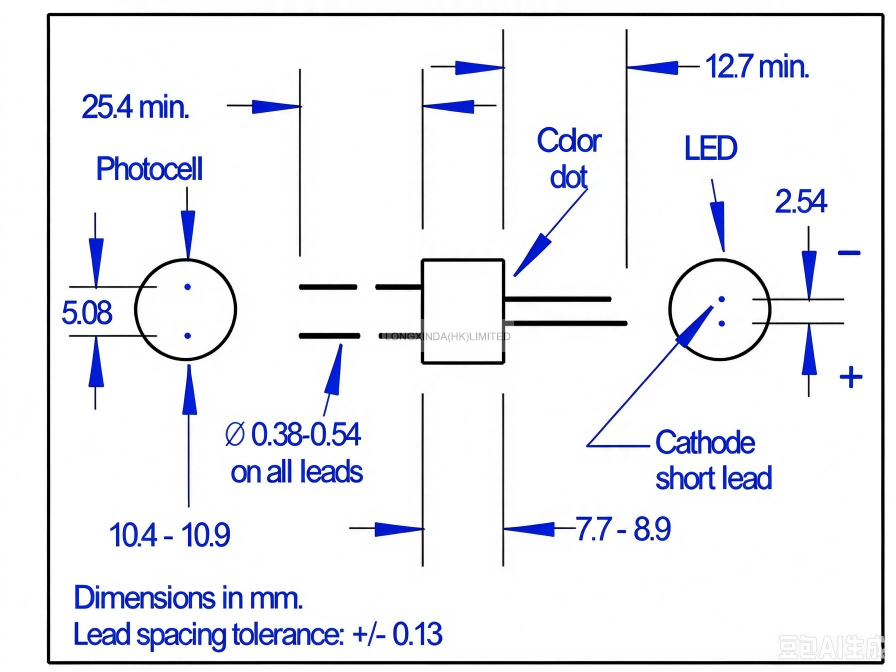

Units are in inches [mm]

■General Care and Handling Instructions

Handling and Storage

• Handle Optocouplers and LEDs gently to prevent damage.

• Avoid exposing the devices to temperatures exceeding the storage temperature rating of the device.

• Maintain a non-condensing environment for optimum performance and lifetime.

Cleaning

• For plastic molded devices, cleaning with a 50/50 mixture of Methanol and isopropyl alcohol is recommended. Cleaning in an ultrasonic bath is generally not recommended.

Special Considerations

• Avoid exposing plastic molded devices or epoxy glob topdevices to harsh chemicals like THINNERS, ACETONE, andTRICHLOROETHYLENE.

■NOTICE:
This PDF catalog is downloaded from the website of Shen Zhen Long Xin Da Technology Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
•This product is non-environmentally friendly products do not meet the EU RoHS directive..
• EU RoHS is "the European Directive 2002/95/EC on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment".
• For more details, please refer to our website for EU RoHS'

 ■Legal Disclaimer

Information in this data sheet is believed to be correct and reliable. However, no responsibility is assumed for possible inaccuracies or omission. Specifications are subject to change without notice.
