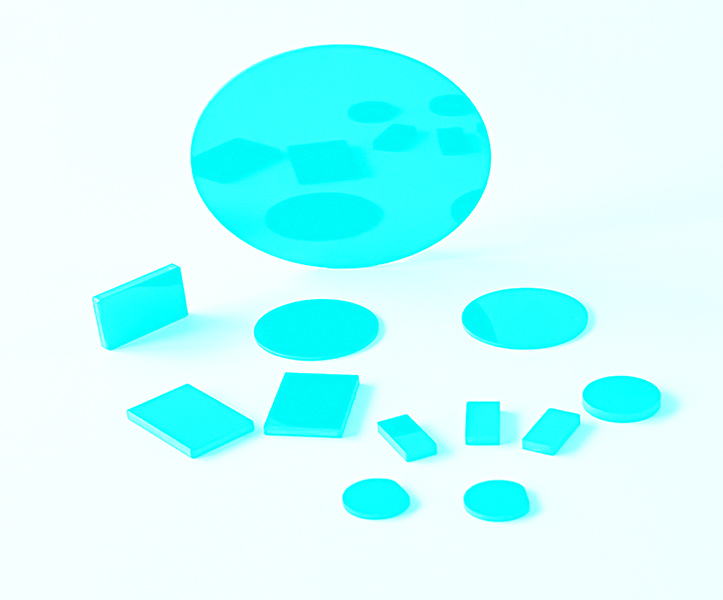

Colored Optical Glass

Blue Glass

Blue Glass

Detail Inquiry
Blue Glass

Blue Glass Characteristic
Type Thickness A[2856k] D65 Chemical Stability ND A×10-7 Tg Ts S
(mm) x y y x y y DA DW (/℃) (℃) (℃)
QB1 2 0.354 0.379 44.8 0.235 0.258 49 1 3 1.52 93 477 550 2.51
QB2 2 0.322 0.334 28.8 0.21 0.206 32.6 1 3 1.52 93 477 550 2.51
QB3 2 0.159 0.042 0.8 0.156 0.028 1.8 1 3 1.52 91 525 577 2.51
QB4 2 0.143 0.101 3 0.145 0.063 5.8 1 3 1.582 81 483 549 3.25
QB9 2 0.187 0.391 14.8 0.156 0.256 20.3 1 2 1.524 89 460 532 2.56
QB10 2 0.409 0.417 74.4 0.283 0.324 76.6 1 2 1.529 84 540 606 2.63
QB3 2 0.159 0.042 0.8 0.156 0.028 1.8 1 3 1.52 91 525 577 2.51
QB11 2 0.328 0.412 52 0.226 0.29 59.1 1 2 1.514 93 477 550 2.57
QB12 2 0.269 0.406 36.2 0.194 0.271 44.2 1 2 1.517 91 506 572 2.59
QB13 2 0.189 0.377 17.3 0.157 0.242 23.7 1 2 1.522 90 490 555 2.61

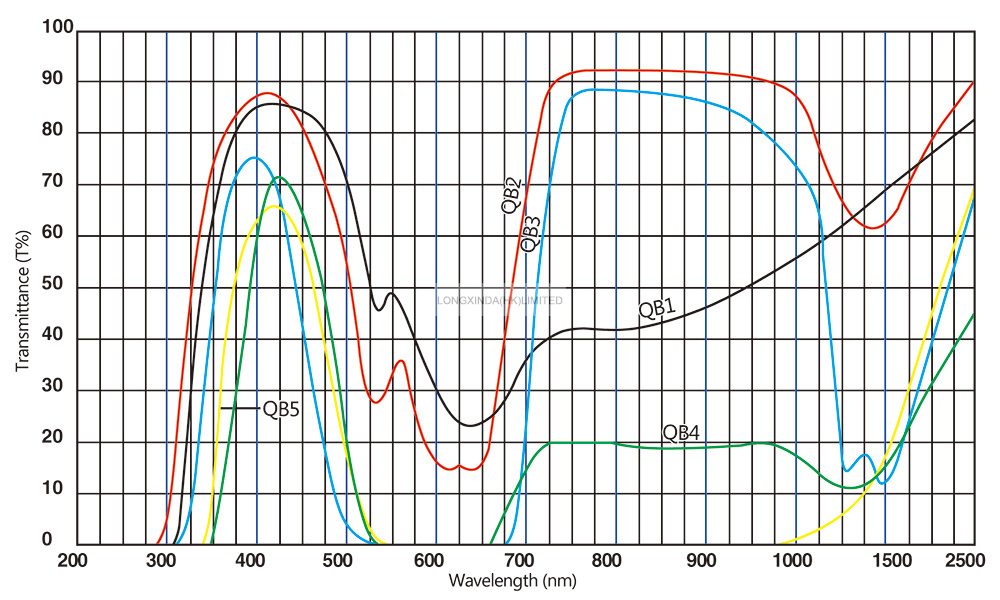

Technical Indexes
Type Thickness 400 420 450 540 600 640 680 700
(mm)  (nm) (nm) (nm) (nm) (nm) (nm) (nm) (nm)
QB1 2 ≥84.0 44.0~50.0 21.0~27.0 34.0~42.0
QB2 2 ≥84.0 22.0~36.0 10.0~21.0
QB3 2 ≥40.0 ≤0.4 ≤3.0
QB4 2 ≥66.7 ≤1.2 ≤19.7
QB5 2 ≥58.0 ≤5.0 ≤2.0

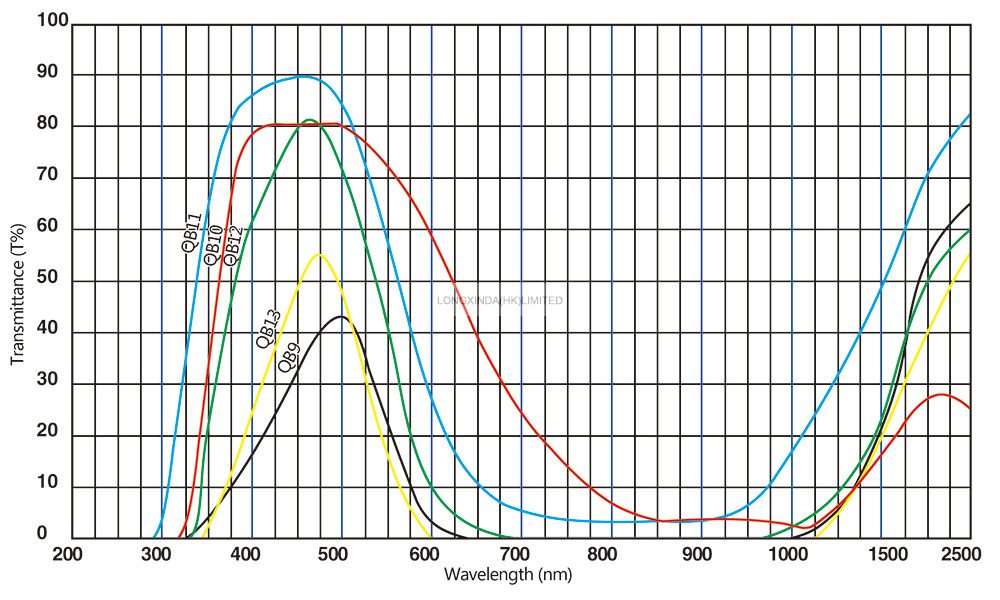

Technical Indexes
Type Thickness 400 480 640 680 700 1000
(mm)  (nm) (nm) (nm) (nm) (nm) (nm)
QB9 2 ≥10.0 ≥36.5 ≤1.0
QB10 2 ≥76.0 23.0~31.0 ≤5.0
QB11 2 ≥80.0 ≥83.8 5.5~11.6
QB12 2 ≥63.5 ≥76.4 ≤0.7
QB13 2 ≥20.0 ≥51.5 ≤0.2

Class Of Bubble, Stripe, Stress
Type Bubble Stripe Stress
QB1 C-B 3C 3
QB2 C-B 3C 3
QB3 C-B 4 3
QB4 C-B 4 3
QB5 C-B 4 3
QB9 C-B 4 3
QB10 D 3C 3
QB11 C-B 3C 3
QB12 C-B 3C 3
QB13 C-B 3C 3

Blue Glass Characteristic
Type Thickness A[2856k] D65 Chemical Stability ND A×10-7 Tg Ts S
(mm) x y y x y y DA DW (/℃) (℃) (℃)
QB16 2 0.43 0.411 82.4 0.3 0.327 84.7 6 5 1.52 2.64
QB17 2 0.424 0.417 71.4 0.299 0.334 74 6 5 1.515 2.6
QB18 2 0.4 0.413 75.2 0.274 0.315 78.3 1 3 1.518 90 490 555 2.5
QB19 2 0.247 0.25 12.2 0.175 0.137 15.6 1 3 1.477 93 428 520 2.25
QB21 2 0.345 0.439 62.1 0.244 0.326 68.8 6 5 1.535 100 421 463 2.86
QB23 2 0.207 0.385 20.8 0.165 0.248 27.7 1 2 1.517 93 477 550 2.56
QB24 2 0.149 0.035 0.7 0.153 0.028 1.9 4 3 1.513 93 477 550 2.56
QB26 2 0.318 0.47 42.4 0.233 0.36 48.5 6 5 1.536 74 549 624 2.82
QB29 2 0.151 0.033 0.7 0.154 0.026 1.8 1 2 1.517 93 477 550 2.56

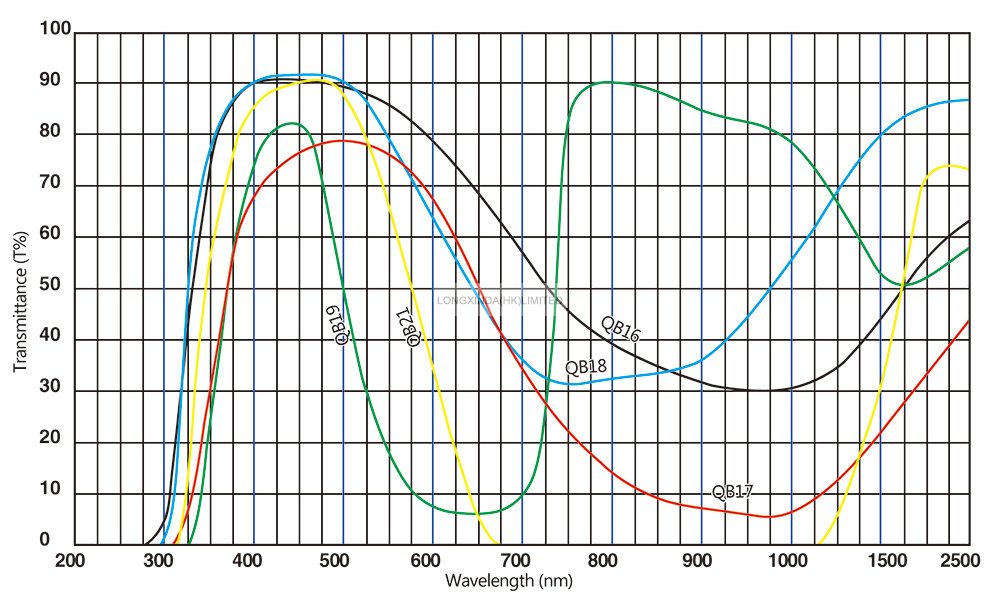

Technical Indexes
Type Thickness 400 420 450 500 540 650 700 800 1000
(mm)  (nm) (nm) (nm) (nm) (nm) (nm) (nm) (nm) (nm)
QB16 2 ≥88.3     ≥87.9      64.9～72.8  33.3～48.1
QB17 2    ≥69.7           27.7～44.0  ≤10.1
QB18 2    ≥88.5  80.0～87.7    25.3～59.3
QB19 2 ≥70.0           560≥10.0  620≤3.0 ≤13.0
QB21 2  360≥50.0     ≥83.0   680≤4.5

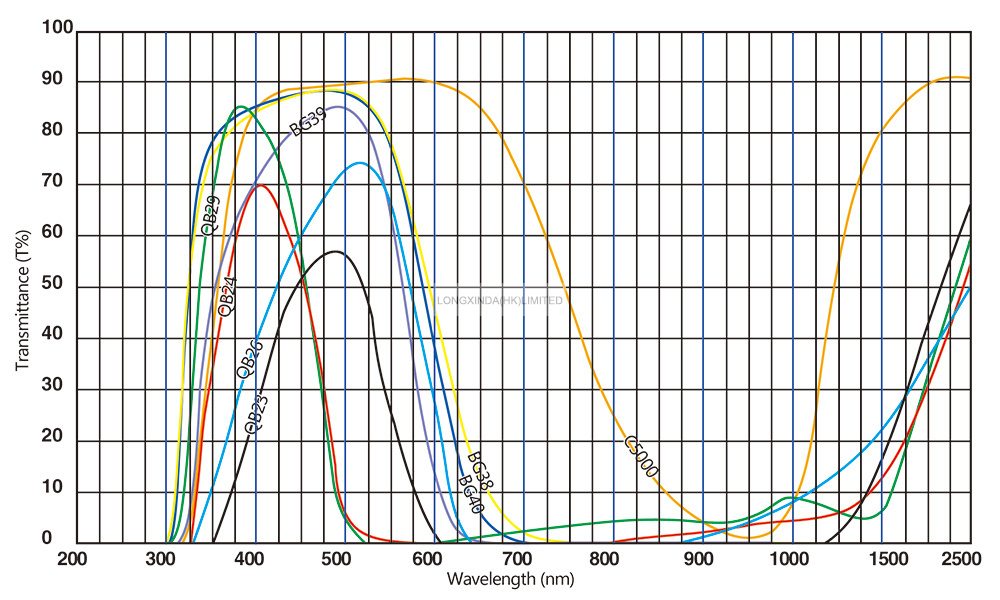

Technical Indexes
Type Thickness 320 334 350 405 480 600 633 694 750
(mm)  (nm) (nm) (nm) (nm) (nm) (nm) (nm) (nm) (nm)
QB23 2 ≤4.0 ≥60.3 ≤0.1
QB24 2    ≤14.7    ≥68.0 ≤19.4 ≤0.1 ≤0.9
QB26 2 ≥10.6 510≥70.9 633≤5.7 ≤5.7 ≤0.1
QB29 2 ≤23.0 380≥83.0 ≤22.0 ≤0.1 ≤14.7

Class Of Bubble, Stripe, Stress
Type Bubble Stripe Stress
QB16 D 3C 3
QB17 D 3C 3
QB18 D 3C 3
QB19 D-C 4 3
QB21 D 3C 4
QB23 C-B 3C 3
QB24 C-B 3C 3
QB26 D-C 3C 4
QB29 C-B 3C 3

Technical Indexes
Type Thickness 350 405 514 633 694 1060
(mm)  (nm) (nm) (nm) (nm) (nm) (nm)
BG38 2 ≥52.0 ≥79.6 ≥83.0 ≤41.50 ≤9.5 ≤0.3
BG39 2 ≥54.6 ≥77.4 ≥84.6 ≤27.3 ≤2.7 ≤0.09

Blue Glass Characteristic
Type Thickness A[2856k] D65 Chemical Stability ND A×10-7 Tg Ts S
(mm) x y y x y y DA DW (/℃) (℃) (℃)
QB38 1 0.471 0.418 80 6 5 1.532 98 452 2.76
QB39 1 0.364 0.431 66 6 5 1.512 97 322 2.74

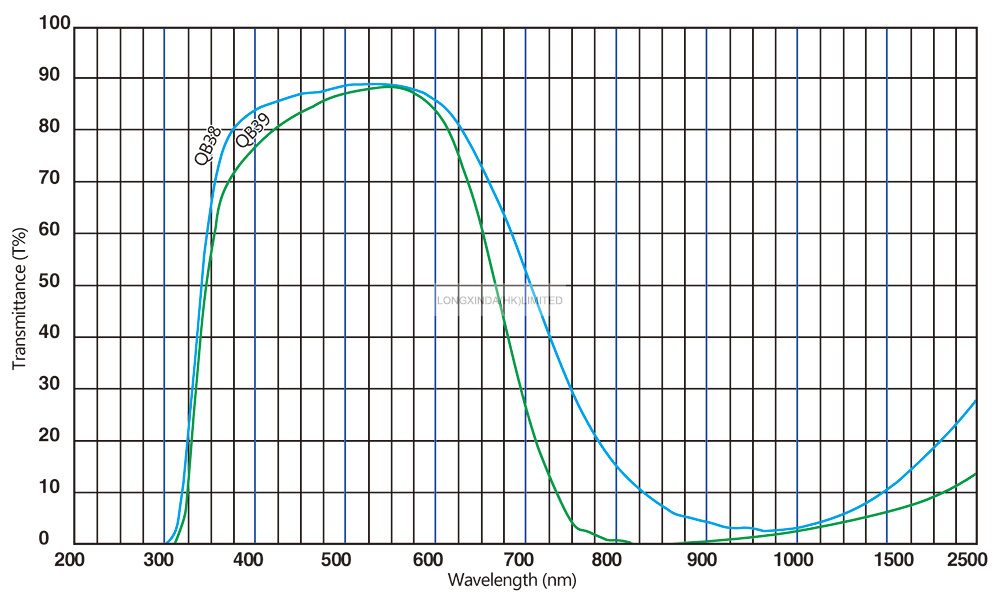

Technical Indexes
Type Thickness 350 405 514 633 694 1060
(mm)  (nm) (nm) (nm) (nm) (nm) (nm)
QB38 1 ≥73.6 ≥85.6 ≥87.4 ≥61.6 ≤29.4 ≤5.5
QB39 1 ≥54.6 ≥77.4 ≥84.6 ≤27.3 ≤2.7 ≤0.091

Class Of Bubble, Stripe, Stress
Type Bubble Stripe Stress
QB38 C-B 3C 3
QB39 C-B 3C 3
