2-pin Ceramic

Photoresistor 50-90kohm @10Lux LXD12539 Light Dependent Resistor (LDR) Ø12mm CdS Photocell Serie

Photoresistor 50-90kohm @10Lux LXD12539 Light Dependent Resistor (LDR) Ø12mm CdS Photocell Serie

Parameter

CdS photoconductive cells LXD12539  type manufactured utilizing our unique semiconductor process technologies cover a broad spectral range from the 350nm to 750nm . They also feature high-speed response, size 0.129 x 0.118 Inches, high sensitivity and low dark current . We also offer custom-designed devices to meet special needs.

Detail Inquiry
Photoresistor 50-90kohm @10Lux LXD12539 Light Dependent Resistor (LDR) Ø12mm CdS Photocell Serie
PART NO. : LXD12539

● Lowest cost visible to near-IR photo detector.
● Epoxy encapsulated
● Small size
● High sensitivity
● Fast response time
● Reliable performance
■Absolute Maximum Rating:
Symbol Parameter Min Max Unit
Vpk DC Voltage Applied / 250 V
Pd Power Dissipation at 25℃ / 200 mW
To Operating and storage temperature -30 +70 ℃
Ts Soldering Temperature* / 260 ℃
*0.118 inch from base for 3seconds with heat sink

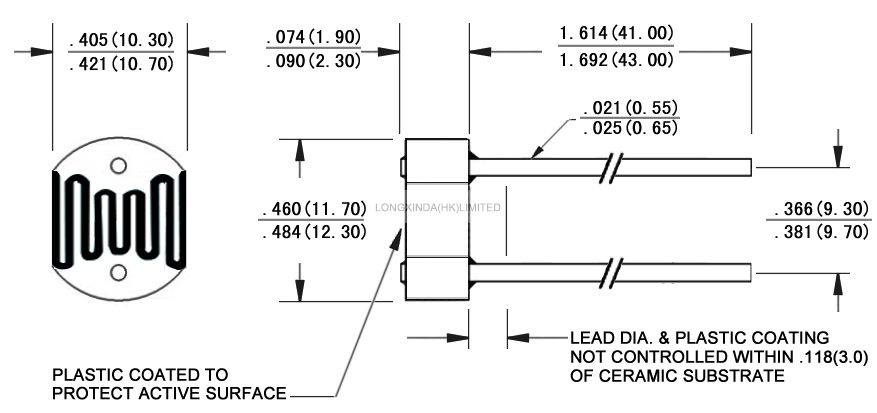

■Dimensions
■Electro-optical characteristics rating (Ta=25 ℃ unless otherwise noted)
Symbol Characteristics Text Conditions Min Typ Max Units
RD Dark Resistance After 10 sec.Ev=0Lux @2856°K 3.0 / / MΩ
RL Light Resistance Ev=10Lux @2856°K 50 / 90 KΩ
S Sensitivity / 0.7   Ω/LUX
入 Range Spectral Application Range Flooded 350 / 750 nm
入 Peak Spectral Application Range Flooded / 560 / nm
Tr Rise Time Ev=10Lux @2856°K / 30 / mS
Tf Fall Time After 10Lux @2856°K / 30 / mS

** R100 , R10: photocell resistances at 100Lux and 10Lux at 2856°k respectively.
** E100 , E10: Iuminances at 100Lux and 10Lux at 2856°k respectively.

■Spectral Response   ■Temperature-Property


■Illuminance Vs Light resistance
