| Symbol |
Characteristics |
Text Conditions |
Min |
Typ |
Max |
Units |
| RD |
Dark Resistance |
After 10 sec.Ev=0Lux @2856°K |
10 |
/ |
/ |
MΩ |
| RL |
Light Resistance |
Ev=10Lux @2856°K |
100 |
/ |
200 |
KΩ |
| S |
Sensitivity |
 |
/ |
0.8 |
|
Ω/LUX |
| 入 Range |
Spectral Application Range |
Flooded |
350 |
/ |
750 |
nm |
| 入 Peak |
Spectral Application Range |
Flooded |
/ |
560 |
/ |
nm |
| Tr |
Rise Time |
Ev=10Lux @2856°K |
/ |
30 |
/ |
mS |
| Tf |
Fall Time |
After 10Lux @2856°K |
/ |
30 |
/ |
mS |
** R100 , R10: photocell resistances at 100Lux and 10Lux at 2856°k respectively.
** E100 , E10: Iuminances at 100Lux and 10Lux at 2856°k respectively.

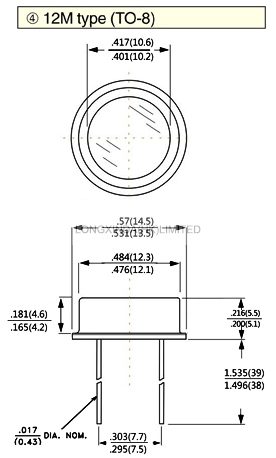

■Dimensions

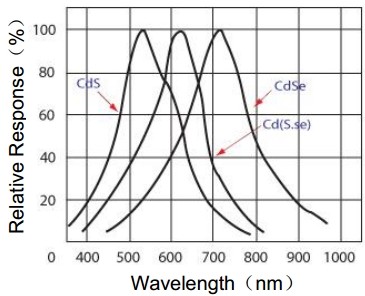

| ■Spectral Response |
|

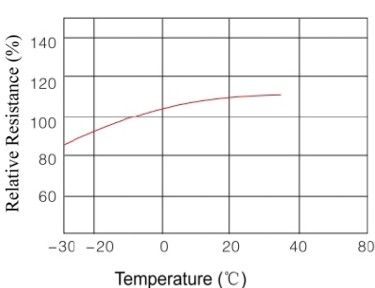

■Temperature-Property |
 |
|
 |
| |
|
|
| ■Illuminance Vs Light resistance |
|
|
 |
|
|
